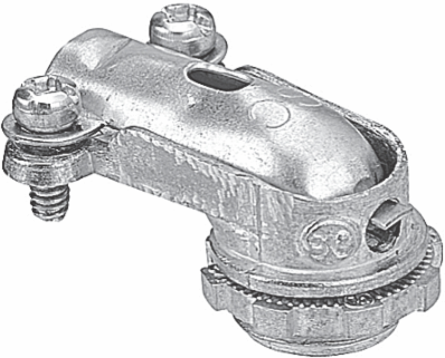

Thomas & Betts 2210M2 Fitting
- MPN: 2210M2
- UPC: 622538058447
- PPN: T-B-2210M2
CAD
$8.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fitting, 90 Degree, Trade Size 3/8 Inch, Clamping Range 0.40 Inch - 0.63 Inch, Zinc Alloy, Suggested Application NMD90 14/2-10/2, 14/3-10/3, 14/4-12/4 and AC90 14/2-10/2, 14/3-10/3, 14/4-12/4, Pack of 2
Specifications
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Model | 90°-Bend |
| Construction type | External thread |
| One-piece | Y |
| Surface protection | Untreated |
| Approved in combination with protective conduit FI | N |
| Nominal size in inch | 3/8 inch |
|---|---|
| Revolving thread | N |
| Connection type screw connection to housing | Thread |
| Material housing | Zinc die-cast |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39121719 Strain reliefs |
|---|---|
| Brand Name | Iberville |
| Application | AC90(BX) 14/2-10/2; 14/3-10/3; 14/4-12/4 - ACG90 (BX) 14/2-10/2; 14/3-10/3; 14/4-12/4 |
| Trade Size | 3/8 Inch |
| Material | Zinc Alloy |
| IGCC | 5067 Strain reliefs |
|---|---|
| Type | Fitting |
| Standard | CSA 204945 |
| Bend | 90 Degrees |
Packaging
| Outer Quantity | 16 |
|---|---|
| Weight Uom | 18.79 lbs. per 100 |
| Outer Dimensions (inches) | 11.75x6.38x5.63 |
|---|
