Superstrut

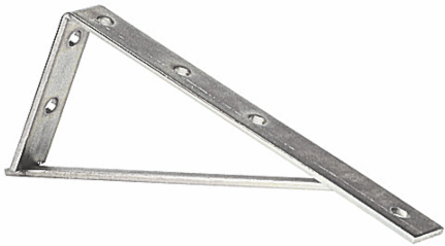

Superstrut S218 HDG Fittings and Brackets

Fittings and Brackets
Fittings and Brackets
  • MPN: S218 HDG
  • UPC: 616013025871
  • PPN: T-B-S218 HDG

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$108.10/ EA

Description

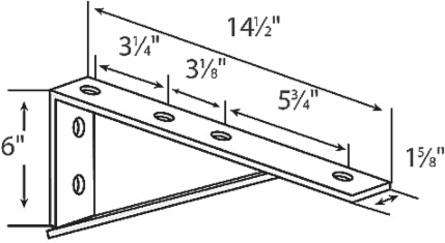

Bracket, 90 Degree, Height 6 Inches, Length 14-1/2 Inches, Width 1-5/8 Inch, Hole Diameter 9/16 Inch, Design Uniform Load 650 Pounds (A1200 Series) 500 Pounds (A1400 Series), Hot-Dip Galvanized

Specifications

North American Specifications (UNSPSC)

UNSPSC
31162502 Angle brackets
Brand Name
Superstrut
Special Features
Unless otherwise noted, nuts and bolts for use with fittings and brackets should be ordered separately
Material
Steel
IGCC3010 Angle brackets
TypeFittings and Brackets
ApplicationLoad ratings vary depending fittings and brackets are used with 12, 14 or 16 gauge channel.
FinishHot Dipped Galvanized

Packaging

Outer Quantity
10
Weight Uom
295 lbs. per 100
Outer Dimensions (inches)17.8x10.6x5.3

European Specifications (ETIM)

ETIM
EC000022 Bracket for cable support system
Angle
90-90°
Surface protection
Hot-dip galvanized
ModelWall bracket
MaterialSteel
