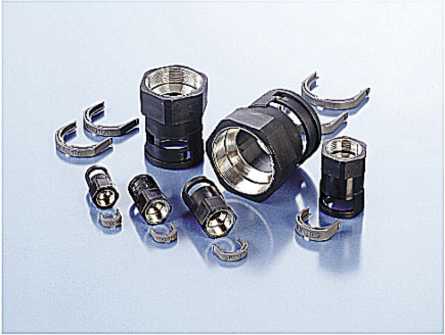

PMA NVIZR-P167/01 Fittings for Nylon Flexible Conduits
- MPN: NVIZR-P167/01
- UPC: 078620962237
- PPN: T-B-NVIZR-P167/01
CAD
$109.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
VIZR Connector Straight, PG Metal Female Thread Without Strain Relief - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- PMA
- Application
- For Machine, Vehicle and Traction Building
- Material
- Polyamide 6 with Nickel Plated Brass Threads
- Connection
- PG16
IGCC4441 Electrical fittings
TypeFittings for Nylon Flexible Conduits
SizeNW17
ColorBlack
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- PG16
- Thread length
- 9.5mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- Y
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter20mm
ModelStraight
Construction typeExternal thread
Thread typeOther
Thread materialBrass
Total length49.5mm
Material sealingNo sealing
Approved in combination with protective conduit CSAY
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +105°C
Packaging
- Outer Quantity
- 50
- Weight Uom
- 0.06 lbs. Each
Outer Dimensions (inches)15.748x11.811x8.661
