Schneider Electric AF1VA618 FIXING SCREW
Schneider Electric AF1VA618 FIXING SCREW
- MPN: AF1VA618
- PPN: SCH-AF1VA618
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$0.82/ EA
Description

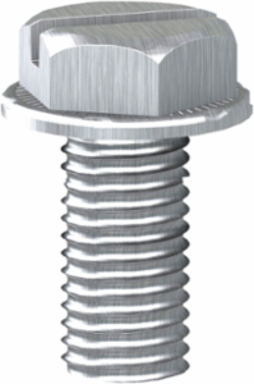

Spacial SM fixing screw set of 100. M6 ISO thread. Head mounting is M6 x 18mm length. Star-delta starter is with captive washer, 1/4 turn sliding clip nuts and corresponding bolts. Asymmetrical DZ5-MB rail, Combination AM1-ED rail, Omega AM1-DE and AM1-DP rail, Notched AM1-EC rail. 2, 8, 15, 12 devices. Motor Power is. 55,110,22,147,90,59,200,4,100,25,220,160,185,7.5,63,30,11,315,75,37,132,375,280,5.5,15,250,18.5 KW.
Specifications
Physical Attributes
- Threaded Length
- 18 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Kw
- 15 kW, 200 kW, 250 kW, 280 kW, 315 kW, 4 kW, 5.5 kW, 55 kW, 7.5 kW, 11 kW, 110 kW, 132 kW, 100 kW, 147 kW, 22 kW, 220 kW, 25 kW, 59 kW, 75 kW, 90 kW, 18.5 kW, 37 kW, 160 kW, 185 kW, 30 kW, 375 kW, 63 kW
- Number Of Devices
- 12, 2, 8, 15
- Star Delta Starter Component
- 1/4 turn sliding clip nuts and corresponding bolts, screw with captive washer
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Head Mounting
- M6 x 18
- Motor Starter Type
- star-delta starters
- Provided Equipment
- washer
- Returnability
- No
- Star Delta Mechanical Interlock
- without
- Accessory Separate Part Category
- mounting accessories
- Offer Owner Code
- 190789
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportcombination AM1-ED rail, Omega AM1-DE rail, Omega AM1-DP rail, asymmetrical DZ5-MB rail, notched AM1-EC rail
Product Mountingrail, mounting plate
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Assembly Stylefor assembly
Fixing Of Mechanismscrews
Iso ThreadM6
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 100
Shape Of Screw Headslotted hexagonal
Sustainable PackagingNo
Warranty In Months18
Pn1
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Product Compatibilityfor uprights AM3-EC
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Provided Equipment
- washer
ETIM
- ETIM 8
- EC003861
ETIM 9EC003861
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- France, Italy
