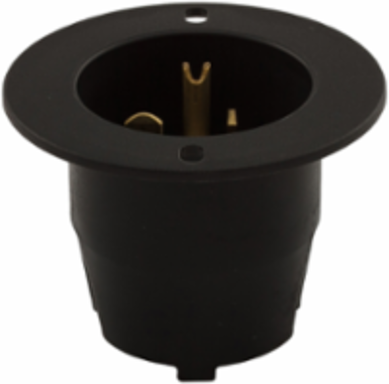

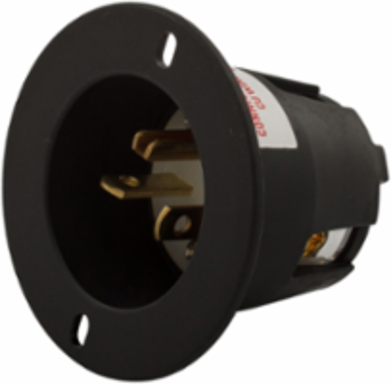

Cooper Wiring Devices 5778C Straight Blade Flanged Inlet, NEMA 5-20P, 20A, 125V, Industrial, Black/White
- MPN: 5778C
- UPC: 040893014166
- PPN: COW-5778C
CAD
$24.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Arrow Hart straight blade flanged inlet , #14 AWG, 20A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-20P, Two-pole, three-wire, grounding, Clamp, Nylon, Core pack
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 20A |
|---|---|
| Torque Rating | 14 lbf-inch |
| Number of Poles | Two-pole |
| Wiring Method | Back wire |
| Material | Nylon |
| Color | Black White |
| Receptacle Type | Two-pole, three-wire, grounding |
| Device Grade | Heavy-duty industrial specification grade |
| Voltage Rating | 125V |
|---|---|
| Allowable Wire Size | #14 AWG |
| Number of Wires | 3 |
| Connection Type | Clamp |
| Contact Material | Brass |
| NEMA Configuration | 5-20P |
| Application | Industrial |
