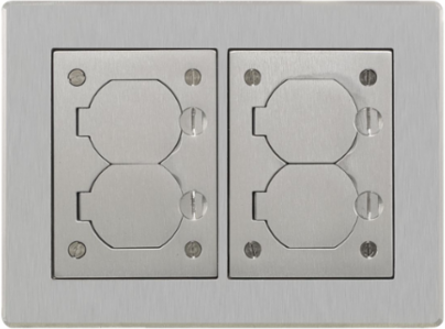

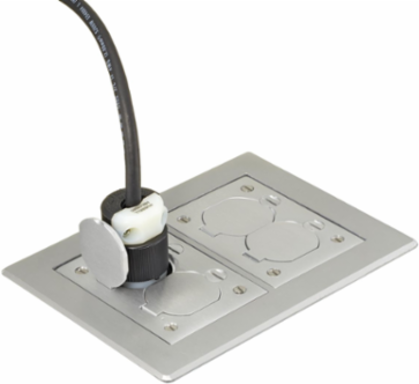

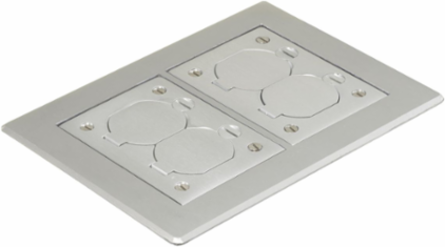

Hubbell Premise Wiring SA3084WB 2-Gang Flat Beveled Edge Flange, 6 Inch x 8.13 Inch x 0.125 Inch, Aluminum
- MPN: SA3084WB
- UPC: 783585696362
- PPN: HBL-SA3084WB
- UNSPSC: 39121307
CAD
$530.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, 2-Gang Flat Beveled Edge Flange With (2) Grounding Wires, Rectangular, 6.00" X 8.14" X 0.125", Brushed Aluminum
Features
- Two gang
- Solid aluminum rectangular flat flange with beveled edges and brushed finish
- Beveled edges provides a soother transition to solid flooring
- Includes (2) 6" solid #12 AWG conductor grounding pigtail
- Ships with mounting screws
- Meets ADA standards for accessible design

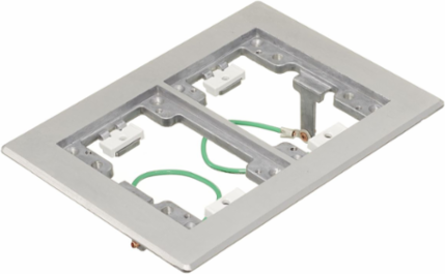

- Flat Aluminum Flange with Ground Wires
Specifications
Additional
| Application | For Use with Metallic and Nonmetallic Rectangular Flush Floorboxes |
|---|---|
| Length | 6 in |
| Height | 0.125 in |
| Material | Aluminum |
| Mounting Type | Field Installed |
| Number of Gang(s) | 2-Gang |
| Grounding Wire Gauge | #12 AWG |
| Flange Type | Rectangular Flat |
| Color | Natural |
| Compliance | cULus Listed, ADA |
| Size | 6 in x 8.13 in x 0.125 in |
|---|---|
| Width | 8.13 in |
| Flange Material | Brushed Aluminum |
| Construction | Fabricated |
| Mounting Method | Screw Mount Device Mounting Plates |
| Grounding Wire Length | 6 in |
| Device Spacer Material | Thermoplastic |
| Flange Edge Style | Beveled |
| Standard | cULus Listed to UL514 |
| Style | Flanged |
