Blackburn SWD160A1330S FLEXIBLE BRAID,SWD160A1SILVER PLATE
- MPN: SWD160A1330S
- UPC: 075114422161
- PPN: T-B-SWD160A1330S
- UNSPSC: 39121465
CAD
$752.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

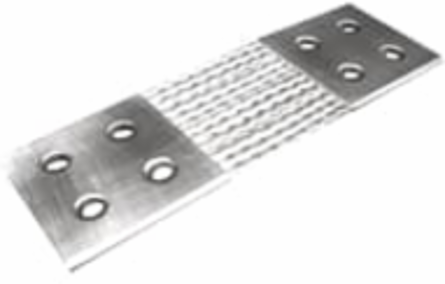

Standard Flexible Braid Connector, Tinned Copper with Silver Plated Ferrules, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 13 inch (330 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. Braid is 4 Across x 1 layer thick.
Features
- 4 Hole Nema Pads, Silver Plated
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- Boreal
- Standard
- IEEE / ANSI C37, 34
- Cable Width
- 4 in , 101.6 mm
- Shape Of Conductor
- Flat
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4695
ApplicationStandard Flexible Links for Medium-Duty Applications
Conductor MaterialTin-Plated Copper
Cable Length13 in , 330 mm
Conductor CategoryFlexible
