PMA BGP-12/01 Flexible Conduit Support Systems
- MPN: BGP-12/01
- UPC: 078621005735
- PPN: T-B-BGP-12/01
CAD
$21.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

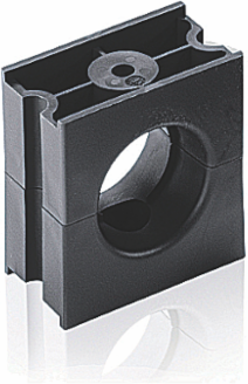

Stackable Support for Conduit, Fits NW 12 with Fine Profile, Half Shell Insert, Black
Specifications
Packaging
| Inner Quantity | 30 |
|---|---|
| Outer Quantity | 90 |
| Weight Uom | 0.07 lbs. Each |
| Inner Dimensions (inches) | 5.3x3.9x2.6 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x8.661 |
European Specifications (ETIM)
| ETIM | EC001171 Holder for protective hose |
|---|---|
| Material quality | Polyamide (PA) |
| Nominal diameter | 16mm |
| Type of fastening | Screw hole |
| Material | Plastic |
|---|---|
| Galvanized | N |
| Colour | Black |
North American Specifications (UNSPSC)
| UNSPSC | 39121701 Electrical hangers |
|---|---|
| Brand Name | PMA |
| Special Features | Very High Impact Resistance |
| Thickness | 36 Millimeters |
| Cable Size | NW12 |
| Color | Black |
| IGCC | 5026 Electrical hangers |
|---|---|
| Type | Flexible Conduit Support Systems |
| Application | Railway Vehicle Construction, Heavy Machine Building, Other Applications with Increased Mechinical Requirements |
| Number Of Holes | 1 |
| Material | High-Grade Specially Formulated Polyamide/Nylon 6 |
