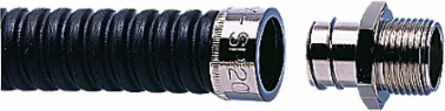

Adaptaflex SB16/M16/A Nickel Plated Brass Conduit Fitting, M16 Thread, 3/8 Inch, IP40
Adaptaflex SB16/M16/A Nickel Plated Brass Conduit Fitting, M16 Thread, 3/8 Inch, IP40
- MPN: SB16/M16/A
- UPC: 5020963004353
- PPN: T-B-SB16/M16/A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.97/ EA
Description
Nickel Plated Brass Straight Fitting with Fixed External Thread, Nominal Conduit Size 16 Millimeters, IP40 Rating, Metric Thread Size M16
Specifications
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.05 lbs. Each
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP40-IP40
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M16 x 1.5
- Material housing
- Brass
- Thread length
- 10mm
- Total height
- 20mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter16mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length25.5mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+300°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M16 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size3/8 Inch
FinishNickel Plated
ConnectionStraight
