Adaptaflex SB32/M32/A Nickel-Plated Brass Conduit Fitting Metric Thread M32, 1 Inch, IP40
- MPN: SB32/M32/A
- UPC: 786210244310
- PPN: T-B-SB32/M32/A
CAD
$53.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

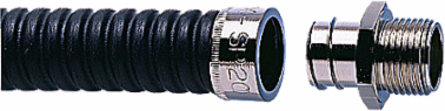

Nickel Plated Brass Straight Fitting with Fixed External Thread, IP40 Rating, Nominal Conduit Size 32 Millimeters, Metric Thread Size M32
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 2
- Weight Uom
- 0.23 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M32 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size1 Inch
FinishNickel Plated
ConnectionStraight
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP40-IP40
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M32 x 1.5
- Material housing
- Brass
- Thread length
- 14mm
- Total height
- 38mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter32mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length39mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+300°C
