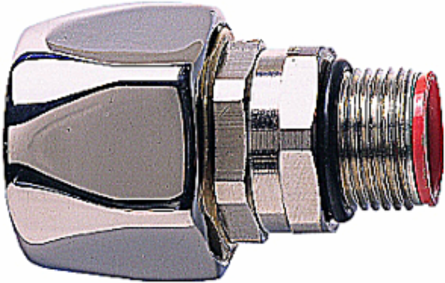

Adaptaflex SPLB25/M25/A Nickel Plated Brass Conduit Fitting M25 Thread 3/4 Inch IP68
- MPN: SPLB25/M25/A
- UPC: 786210245447
- PPN: T-B-SPLB25/M25/A
CAD
$252.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nickel Plated Brass Straight Fitting with Fixed External Thread, Nominal Conduit Size 25 Millimeters, IP68 Rating, Metric Thread Size M25
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP68-IP68
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M25 x 1.5
- Material housing
- Brass
- Thread length
- 17mm
- Total height
- 17.6mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter25mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length58mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-65-+135°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M25 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size3/4 Inch
FinishNickel Plated
ConnectionStraight
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.53 lbs. Each
Outer Dimensions (inches)1x1x1
