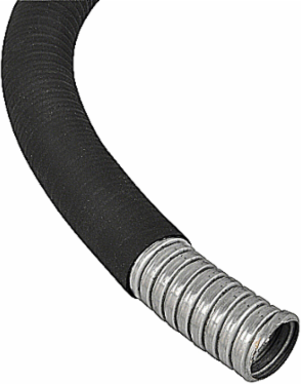

Adaptaflex SPLHC40/25M Extreme Temperature Flexible Conduit, 1-1/4 Inch, 25 Meters, Medium Flexibility
- MPN: SPLHC40/25M
- UPC: 786210245706
- PPN: T-B-SPLHC40/25M
CAD
$2708.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 40mm, Outside Diameter 41.8mm, Inside Diameter 35.4mm, Static Bend Radius 180mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very High flexibility
- High fatigue life
- High mechanical strength
- Self extinguishing and halogen free
- Machine Building
- Extreme Temperature Environments
Specifications
European Specifications (ETIM)
| ETIM | EC001179 Protective metallic hose |
|---|---|
| Outer diameter | 41.8mm |
| Material | Steel |
| Sheathing material 1st coating | Other |
| Degree of protection (IP) | IP68 |
| Colour | Black |
| Nominal diameter | 40mm |
|---|---|
| Inner diameter | 35.4mm |
| Surface protection | Other |
| Operating temperature | -65-+135°C |
| Weight | 1.08kg/m |
| Bending strength | Flexible |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 59.52 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | Adaptaflex |
| Application | Liquid Tight - Extreme Temperature Environments |
| Outside Diameter | 41.8mm |
| Length | 25 m |
| Flexibility | Medium |
| Color | Black |
| IGCC | 5543 Liquid Tight Conduit |
|---|---|
| Type | Extreme Temperature Flexible Conduit |
| Trade Size | 1-1/4 Inch/NC 40mm |
| Inside Diameter | 35.4mm |
| Radius | 180mm |
| Material | Galvanized Steel Core with Thermoplastic Rubber Cover |
