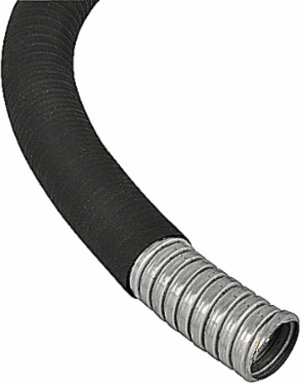

Adaptaflex SPLHC50/25M Extreme Temperature Flexible Conduit 1-1/2 Inch, 25 Meters Length, Steel Construction
- MPN: SPLHC50/25M
- UPC: 786210258959
- PPN: T-B-SPLHC50/25M
CAD
$3170.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 50mm, Outside Diameter 47.9mm, Inside Diameter 40.4mm, Static Bend Radius 240mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very High flexibility
- High fatigue life
- High mechanical strength
- Self extinguishing and halogen free
- Machine Building
- Extreme Temperature Environments
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001179 Protective metallic hose
- Outer diameter
- 47.9mm
- Material
- Steel
- Sheathing material 1st coating
- Other
- Degree of protection (IP)
- IP68
- Colour
- Black
Nominal diameter50mm
Inner diameter40.4mm
Surface protectionOther
Operating temperature-65-+135°C
Weight1.15kg/m
Bending strengthFlexible
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Application
- Liquid Tight - Extreme Temperature Environments
- Outside Diameter
- 47.9mm
- Length
- 25 m
- Flexibility
- Medium
- Color
- Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size1-1/2 Inch/NC 50mm
Inside Diameter40.4mm
Radius240mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover
Packaging
- Outer Quantity
- 1
- Weight Uom
- 63.8 lbs. Each
Outer Dimensions (inches)1x1x1
