Adaptaflex SPLHCB20/25M Liquid Tight Extreme Temperature Flexible Conduit 20mm x 25 Meters
- MPN: SPLHCB20/25M
- UPC: 786210245508
- PPN: T-B-SPLHCB20/25M
CAD
$3264.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

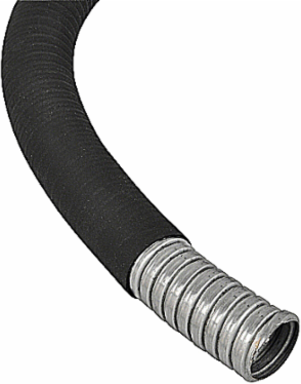

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit with Stainless Steel Overbraid, Medium Flexibility, Nominal Conduit Size 20mm, Outside Diameter 21.1mm, Inside Diameter 15.9mm, Static Bend Radius 80mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very high flexibility
- Very high fatigue life
- High mechanical strength, high abrasion resistance
- Self extinguishing and halogen free
- Standard EMI screen rate
- Rail/Infrastructure
- Underground
- Public Buildings
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001179 Protective metallic hose
- Outer diameter
- 21.1mm
- Material
- Steel
- Sheathing material 1st coating
- Other
- Operating temperature
- -65-+135°C
- Weight
- 0.385kg/m
- Bending strength
- Flexible
Nominal diameter20mm
Inner diameter15.9mm
Surface protectionOther
Sheathing material 2nd coating (exterior)Stainless steel wire
Degree of protection (IP)IP68
ColourBlack
Packaging
- Outer Quantity
- 1
- Weight Uom
- 21.22 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Application
- Liquid Tight - Extreme Temperature Environments
- Outside Diameter
- 21.1mm
- Length
- 25 m
- Flexibility
- Medium
- Color
- Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size1/2 Inch/NC 20mm
Inside Diameter15.9mm
Radius80mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover
