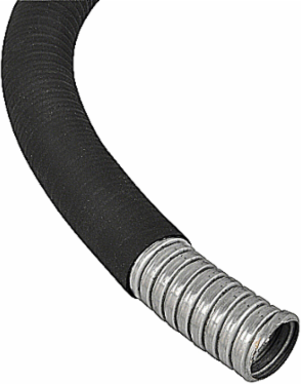

Adaptaflex SPLHCB32/25M Extreme Temperature Liquid Tight Flexible Conduit 32mm OD, 25 Meters Length
- MPN: SPLHCB32/25M
- UPC: 786210245546
- PPN: T-B-SPLHCB32/25M
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit with Stainless Steel Overbraid, Medium Flexibility, Nominal Conduit Size 32mm, Outside Diameter 33.1mm, Inside Diameter 26.7mm, Static Bend Radius 145mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very high flexibility
- Very high fatigue life
- High mechanical strength, high abrasion resistance
- Self extinguishing and halogen free
- Standard EMI screen rate
- Rail/Infrastructure
- Underground
- Public Buildings
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001179 Protective metallic hose
- Outer diameter
- 33.1mm
- Material
- Steel
- Sheathing material 1st coating
- Other
- Operating temperature
- -65-+135°C
- Weight
- 0.677kg/m
- Bending strength
- Flexible
Nominal diameter32mm
Inner diameter26.7mm
Surface protectionOther
Sheathing material 2nd coating (exterior)Stainless steel wire
Degree of protection (IP)IP68
ColourBlack
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Application
- Liquid Tight - Extreme Temperature Environments
- Outside Diameter
- 33.1mm
- Length
- 25 m
- Flexibility
- Medium
- Color
- Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size1 Inch/NC 32mm
Inside Diameter26.7mm
Radius145mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover
Packaging
- Outer Quantity
- 1
- Weight Uom
- 37.31 lbs. Each
Outer Dimensions (inches)1x1x1
