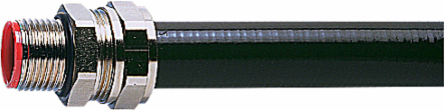

Adaptaflex SPL12/M16/M Liquid Tight Non-Metallic Fitting 12mm, M16 Thread, Nickel Plated Brass
- MPN: SPL12/M16/M
- UPC: 786210245805
- PPN: T-B-SPL12/M16/M
CAD
$57.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nickel Plated Brass Liquid Tight Straight Swivel Fitting with External Thread, Nominal Conduit Size 12 Millimeters, Metric Thread Size 16M
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M16 Thread
IGCC4441 Electrical fittings
TypeLiquid Tight Non-Metallic Fitting
Size5/16 Inch
FinishNickel Plated
ConnectionStraight
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP66-IP69K
- Revolving thread
- Y
- Connection type screw connection to housing
- Thread
- Thread connection size
- M16 x 1.5
- Material housing
- Brass
- Thread length
- 12mm
- Total height
- 24mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter12mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceN
Surface protectionNickel-plated
Total length32mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULY
Operating temperature-65-+150°C
Packaging
- Inner Quantity
- 10
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity200
Weight Uom0.09 lbs. Each
