Adaptaflex SPLHC10/25M Extreme Temperature Flexible Conduit 10mm, 11.8mm OD, 25 Meter Length
- MPN: SPLHC10/25M
- UPC: 786210245584
- PPN: T-B-SPLHC10/25M
CAD
$776.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

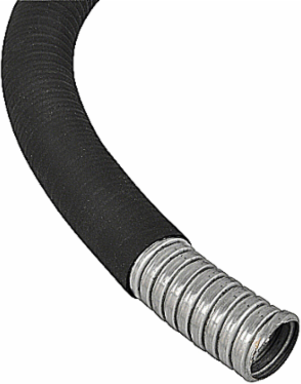

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 10mm, Outside Diameter 11.8mm, Inside Diameter 7.0mm, Static Bend Radius 40mm, Reel Length 25 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black
Features
- Very high UV resistance
- Very High flexibility
- High fatigue life
- High mechanical strength
- Self extinguishing and halogen free
- Machine Building
- Extreme Temperature Environments
Specifications
European Specifications (ETIM)
| ETIM | EC001179 Protective metallic hose |
|---|---|
| Outer diameter | 11.8mm |
| Material | Steel |
| Sheathing material 1st coating | Other |
| Degree of protection (IP) | IP68 |
| Colour | Black |
| Nominal diameter | 10mm |
|---|---|
| Inner diameter | 7mm |
| Surface protection | Other |
| Operating temperature | -65-+135°C |
| Weight | 0.16kg/m |
| Bending strength | Flexible |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | Adaptaflex |
| Application | Liquid Tight - Extreme Temperature Environments |
| Outside Diameter | 11.8mm |
| Length | 25 m |
| Flexibility | Medium |
| Color | Black |
| IGCC | 5543 Liquid Tight Conduit |
|---|---|
| Type | Extreme Temperature Flexible Conduit |
| Trade Size | 1/4 Inch/NC 10mm |
| Inside Diameter | 7.0mm |
| Radius | 40mm |
| Material | Galvanized Steel Core with Thermoplastic Rubber Cover |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 8.93 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
