Extreme Temperature Flexible Conduit, 20mm Nominal Diameter, 10 Meters Length
Adaptaflex

Adaptaflex SPLHC20/10M Extreme Temperature Flexible Conduit, 20mm Nominal Diameter, 10 Meters Length

  • MPN: SPLHC20/10M
  • UPC: 786210245621
  • PPN: T-B-SPLHC20/10M

CAD

$464.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

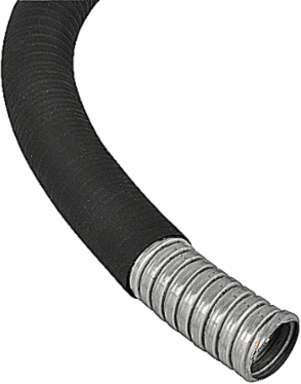

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit, Medium Flexibility, Nominal Conduit Size 20mm, Outside Diameter 21.1mm, Inside Diameter 15.9mm, Static Bend Radius 80mm, Reel Length 10 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black

Features

  • Very high UV resistance
  • Very High flexibility
  • High fatigue life
  • High mechanical strength
  • Self extinguishing and halogen free
  • Machine Building
  • Extreme Temperature Environments

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC
39131706 Electrical conduit
Brand Name
Adaptaflex
Application
Liquid Tight - Extreme Temperature Environments
Outside Diameter
21.1mm
Length
10 m
Flexibility
Medium
Color
Black
IGCC5543 Liquid Tight Conduit
TypeExtreme Temperature Flexible Conduit
Trade Size1/2 Inch/NC 20mm
Inside Diameter15.9mm
Radius80mm
MaterialGalvanized Steel Core with Thermoplastic Rubber Cover

European Specifications (ETIM)

ETIM
EC001179 Protective metallic hose
Outer diameter
21.1mm
Material
Steel
Sheathing material 1st coating
Other
Degree of protection (IP)
IP68
Colour
Black
Nominal diameter20mm
Inner diameter15.9mm
Surface protectionOther
Operating temperature-65-+135°C
Weight0.4kg/m
Bending strengthFlexible

Packaging

Outer Quantity
1
Weight Uom
8.49 lbs. Each
Outer Dimensions (inches)1x1x1
