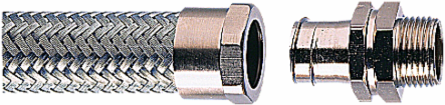

Adaptaflex SPB12/M16/B Nickel Plated Brass Conduit Fitting, 12mm Size, M16 Thread
- MPN: SPB12/M16/B
- UPC: 786210245225
- PPN: T-B-SPB12/M16/B
CAD
$37.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nickel Plated Brass Straight Fitting with Swivel External Thread, Nominal Conduit Size 12 Millimeters, IP54 Rating, Metric Thread Size M16
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP54-IP54
- Revolving thread
- Y
- Connection type screw connection to housing
- Thread
- Thread connection size
- M16 x 1.5
- Material housing
- Brass
- Thread length
- 8mm
- Approved in combination with protective conduit DIN EN 61386-23
- N
- Approved in combination with protective conduit UL
- N
- Operating temperature
- -50-+300°C
Nominal diameter12mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length31.5mm
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit FIN
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M16 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size5/16 Inch
FinishNickel Plated
ConnectionStraight
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.06 lbs. Each
Outer Dimensions (inches)1x1x1
