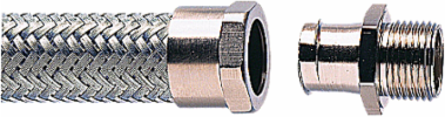

Adaptaflex SPB25/M25/A Nickel Plated Brass Straight Conduit Fitting M25 3/4 Inch, IP54 Rated
- MPN: SPB25/M25/A
- UPC: 786210245263
- PPN: T-B-SPB25/M25/A
CAD
$26.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nickel Plated Brass Straight Fitting with Fixed External Thread, Nominal Conduit Size 25 Millimeters, IP54 Rating, Metric Thread Size M25
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP54-IP54
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M25 x 1.5
- Material housing
- Brass
- Thread length
- 12mm
- Total height
- 30mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter25mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length35.5mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+300°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M25 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size3/4 Inch
FinishNickel Plated
ConnectionStraight
Packaging
- Inner Quantity
- 10
- Outer Dimensions (inches)
- 14x14x6
Outer Quantity200
Weight Uom0.14 lbs. Each
