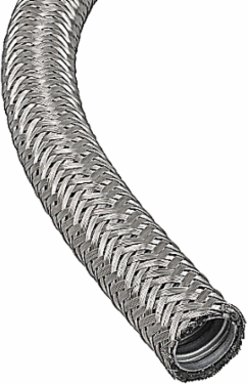

Adaptaflex SSB16/25M Low Fire Hazard Conduit 16mm, 25 Meters, Stainless Steel, High Flexibility
- MPN: SSB16/25M
- UPC: 786210260709
- PPN: T-B-SSB16/25M
CAD
$2570.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low Fire Hazard, High Flexibility, Covered Steel Conduit, Nominal Conduit Size 16mm, Outside Diameter 17.5mm, Inside Diameter 13.0mm, Static Bend Radius 35mm, Reel Length 25 Meters, 316 Stainless Steel Core and Overbraid
Features
- Very high UV resistance
- High flexibility
- High fatigue life
- High mechanical strength, high abrasion resistance
- Inherent low fire hazard and halogen free
- Standard EMI screen rating
- Marine
- Corrosive Environments
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- Very High UV Protection and High Fatigue Life
- Trade Size
- 3/8 Inch/16mm
- Inside Diameter
- 13.0mm
- Radius
- 35mm
- Material
- Stainless Steel Core and Overbraid
IGCC5535 Electrical conduit
TypeLow Fire Hazard Conduit
ApplicationIndoors / Outdoors - Standard EMI Screen - Very High Abrasion Resistance
Outside Diameter17.5mm
Length25 m
FlexibilityHigh
Packaging
- Outer Quantity
- 1
- Weight Uom
- 8.6 lbs. Each
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001179 Protective metallic hose
- Outer diameter
- 17.5mm
- Material
- Stainless steel
- Sheathing material 1st coating
- Stainless steel wire
- Degree of protection (IP)
- IP40
- Colour
- Metallic
Nominal diameter16mm
Inner diameter13mm
Surface protectionUntreated
Operating temperature-50-+300°C
Weight0.156kg/m
Bending strengthFlexible
