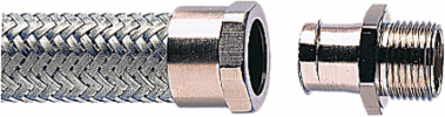

Adaptaflex S20/M20/A Nickel Plated Brass Conduit Fitting 1/2 Inch M20 Metric Thread
- MPN: S20/M20/A
- UPC: 786210251387
- PPN: T-B-S20/M20/A
CAD
$23.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nickel Plated Brass Straight Fitting with Fixed External Threads, Nominal Conduit Size 20 Millimeters, Metric Thread Size M20
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP40-IP40
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M20 x 1.5
- Material housing
- Brass
- Thread length
- 13mm
- Total height
- 24mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter20mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length29mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+350°C
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 300
- Weight Uom
- 9.65 lbs. per 100
Inner Dimensions (inches)1x1.5x1.4
Outer Dimensions (inches)6x14x14
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M20 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size1/2 Inch
FinishNickel Plated
ConnectionStraight
