Schneider Electric LA9G3112 Flexible terminal extensions,TeSys Giga contactor,for LC1G265-500 to align with MCCB,3 pole
Schneider Electric LA9G3112 Flexible terminal extensions,TeSys Giga contactor,for LC1G265-500 to align with MCCB,3 pole
- MPN: LA9G3112
- PPN: SCH-LA9G3112
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$793.09/ EA
Description

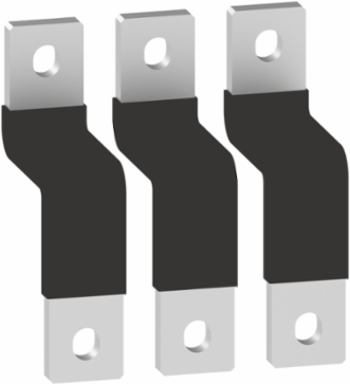

These accessories are flexible link bars for TeSys Giga 265-500 contactor to align with MCCB. It is used to 3 Poles electrical circuit. It coule be connected with MCCB. To be used to hold cables in place when replacing contactor, making reinstallation faster and easier. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Specifications
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Poles Description
- 3P, 3P
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Halogen Free Status
- Halogen free plastic parts product
- Product Or Component Type
- terminal extension
- Range
- TeSys
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2105013EN
- Pn
- 1
- Width Nominal
- 32 mm
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyEN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4
Local Publishable Date2025-08-11
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameLA9G
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 3
Range Of ProductTeSys G
Sustainable PackagingYes
Warranty In Months18
Offer Owner Code190788
Height Nominal147 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1G265...500, LC1G265...500
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2105013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2105013EN
Operating Altitude9842.52 ft (3000 m) without derating, 5000 m with derating factor
Take BackNo
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2105013
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal extension
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Specifications
- Country of Origin
- China, France, United Kingdom
Depth90 mm
