Fluke FLK-a3001 FC Fluke a3001 FC Wireless iFlex AC Current Module FLK-a3001 FC

MPN: FLK-a3001 FC
UPC: 095969723565
PPN: FLU-FLK-A3001FC//FLK

$490.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

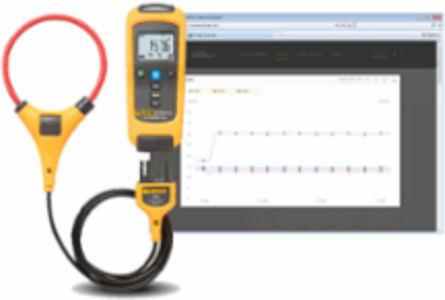

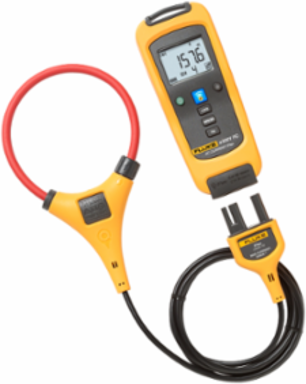

Fluke a3001 FC Wireless iFlex AC Current Module FLK-a3001 FC

Documentation & Downloads

Specifications

Key Specifications

Range	0.5 A to 2500 A AC
Accuracy	3% ± 5 digits (5 Hz to 500 Hz)
LCD w/backlight	3 1/2 digits
Battery type	2 AA, NEDA 15 A, IEC LR6
Memory	Record up to 65,000 readings
RF communication range Open air, unobstructed	Up to 20 m
RF communication range Obstructed, concrete wall or steel electrical enclosure	Up to 3.5 m
Storage temperature	-40°C to +60°C
Operating humidity	90% at 35°C75% at 40°C45% at 50°C
Altitude Storage	12,000 m
Safety compliance	IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Pollution Degree	2
Size (HxWxD)	16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
Warranty	Three years

Resolution	0.1 A
Crest factor (50 Hz/60 Hz)	3.0 at 1100 A2.5 at 1400 A1.42 at 2500 AAdd 2% for C.F. > 2
Log rate/interval	1 sec minimum/adjustable by PC or front panel
Battery life	400 hours
RF communications	2.4 GHZ ISM Band
RF communication range Obstructed, sheetrock wall	Up to 6.5 m
Operating temperature	-10°C to +50°C
Temperature coefficient	Add 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
Altitude	Operating: 2,000 m
EMC	EN 61326-1:2006
Safety rating	CAT IV 600 V, CAT III 1000 V
Ingress Protection (IP) rating	IP42
Jaw opening	25.4 cm (10 in) coil
Weight	.22 kg (8 oz)
