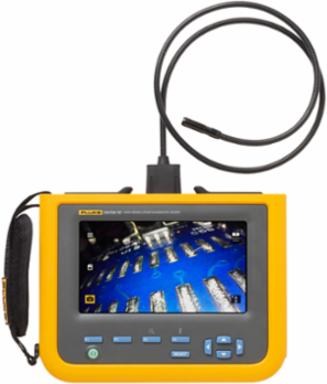

Fluke FLK-DS703FC Fluke DS703 FC Diagnostic Scope FLK-DS703FC
- MPN: FLK-DS703FC
- UPC: 095969865722
- PPN: FLU-FLK-DS703 FC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

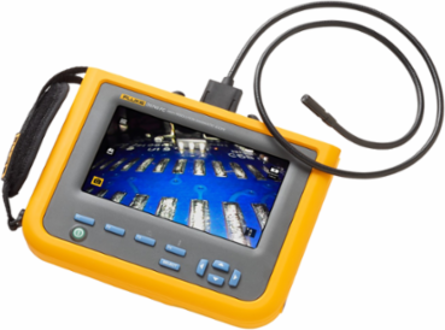

Fluke DS703 FC Diagnostic Scope FLK-DS703FC
Documentation & Downloads
Specifications
General Features
| Color palettes | Visible light, grayscale or inverted |
|---|---|
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button |
| Strap | Hand strap and neck strap |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) |
| Internal memory | 6 GB |
|---|---|
| Carrying case | Protective EVA case |
| Power adapter | AC adapter/battery charger input |
| Battery life | 3 hours at 50 % LED brightness |
| Weight | 1.95 lbs (0.88 Kg) |
Communication
| Wireless Interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) |
|---|---|
| Fluke Connect™ | Save and share images directly from the Videoscope. Attach images or video to an asset record or work order. |
| Data Transfer | USB and micro HDMI cable |
|---|---|
| Instant upload to the cloud | Yes, with Fluke Connect™ |
LCD Screen
| Touch Screen | Capacitive touch screen |
|---|---|
| Refresh rate | 30 hz |
| LED backlight | Adjust display brightness for optimal viewing |
| Size | 7 inch (17.79 cm) |
|---|---|
| UpisUp™ technology | Real-time upright adjustment for image |
IP Rating
| Tablet | IP54, dust protected and protected against water projected from a nozzle |
|---|---|
| Drop Test | 2 meter (6.56 feet) |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Warranty | 2 years |
| Probe | IP68, dust tight and immersion of 1 meter or more depth |
|---|---|
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F), 50 °C (113 °F) for less than 10 minutes |
| Operating humidity | 90 % at 35 °C (95 °F)75 % at 40 °C (104 °F)45 % at 50 °C (122 °F) |
Dual view camera, forward and side
| Resolution | 1200 x 720 (864,000 pixels) |
|---|---|
| Video Recording Format | AVI |
| Digital zoom | Adjustable from 1x to 8x zoom |
| Depth of field | 25 mm to infinity |
| Minimum focus distance | 10 mm |
| Rotation | 180° |
| Still image format | JPG |
|---|---|
| Video Output Format | MPEG compression |
| Field of view | 68° |
| Video resolution | 720 p |
| Focus Type | Fixed |
| Streaming video | Via HDMI and Fluke Connect™ |
Videoscope probe
| Length | 1.2 meter (3.94 feet) |
|---|---|
| Diameter | 8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available |
| Lighting | Adjustable LED, on front, one side |
| Up is Up™ Technology | Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only |
| Type | Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth |
|---|---|
| Material | Elastomer coated steel |
| Illumination | 53 Lux |
