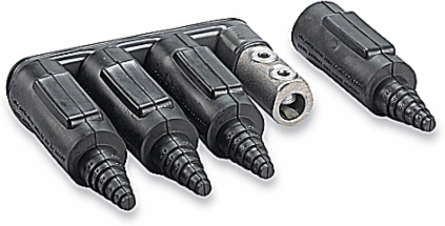

Homac UH 5 R Flood-Seal Multi-Port Connectors, 8-7/8 Inch, for 5 Conductors, Aluminum
- MPN: UH 5 R
- UPC: 783786754908
- PPN: T-B-UH 5 R
CAD
$189.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5
Features
- Flood-Seal Insulating Rockets Field Tested in More than 10 Million Applications.
- All Connectors are 100 Percent Hi-Pot Tested at 4000 Volts for 60 Seconds.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep out Moisture.
- Ball-Bottomed Screws Support the Widest Conductor Range and Aid in Breaking up Aluminum Oxide.
- Aluminum Alloy Connector Construction for High Strength and High Conductivity.
- Dual-Rated for and Approved for a Wide Range of Aluminum or Copper Conductors.
- Exceed ANSI C119.1 and C119.4 Requirements and Western Underground Committee Guidelines.
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 10
- Weight Uom
- 3.25 lbs. Each
Outer Dimensions (inches)17.875x13.875x8.625
North American Specifications (UNSPSC)
- UNSPSC
- 39121443 Electrical underground bus connector
- Brand Name
- Homac
- Special Features
- All Connectors are 100% Hi-Pot tested at 4000V for 60 seconds. Ensures that connectors are 100% watertight and molded correctly.For direct burial or above-ground pedestal installation. Flood-Seal Insulating rockets have been field tested in more than 10 million applications.
- Standard
- ANSI C119.1 and C119.4
- Connection
- Mechanical
- Number Of Conductors
- 5
- Color
- Black
- Insulation
- Yes PVC with EPDM Rubber Rockets
IGCC4663 Electrical underground bus connector
TypeFlood-Seal Multi-Port Connectors
ApplicationDirect Burial or Above Ground Pedestal Installation
Size8-7/8 inch
Conductor Range#6-350
MaterialAluminum
Voltage Rating4000V for 60 Seconds
