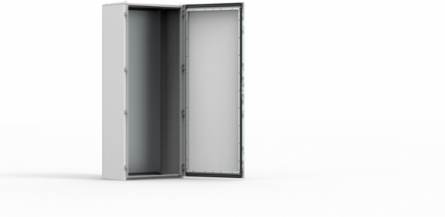

nVent Hoffman MKS18104R5 Floor Stand 1800x1000x400mm Mild Steel Single Door Enclosure, IP55
- MPN: MKS18104R5
- UPC: 783510505462
- PPN: HOF-MKS18104R5
CAD
$3432.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The mild steel single door compact, available in many sizes, is suited for many applications eliminating failure. This Mild Steel Single Door Compact Version, MKS, MKS18104R5 item measures 1800x1000x400mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Material: Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Body: Four times folded and seam-welded frame. Integrated depth profiles with hole pattern, allowing mounting plate adjustment in depth.
- Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55 | TYPE 12 | IK 10.
- Delivery: Body with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame (except PE version). Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Mounting Plate Included
- Yes
- Max Mounting Depth
- 359
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Door Thickness
- 2
- Weight
- 136
Height (H)1,800
Depth (D)400
Panel Size1694 x 894
MaterialMild Steel
ColorLight Gray
Body Thickness1.35
Protection RatingIP55
