nVent Hoffman FLOORPOSTSS Floorpost for Syspend VHDS-Motion Arm, 12x12x74 Inch, Brushed Stainless Steel

Floorpost for Syspend VHDS-Motion Arm, 12x12x74 Inch, Brushed Stainless Steel
  • MPN: FLOORPOSTSS
  • UPC: 783510186883
  • PPN: HOF-FLOORPOSTSS
  • UNSPSC: 39121325

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4799.85/ EA

Description

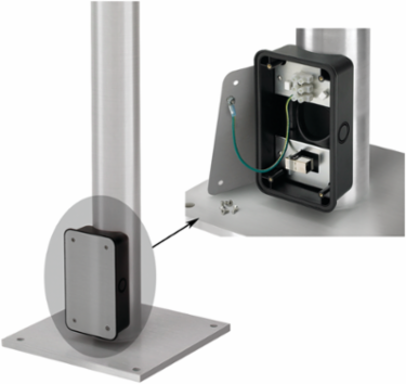

A simple solution to mount Syspend VHDS-Motion Arms when a structural surface is not available. This Floorpost with Junction Box for Syspend VHDS-Motion Arm, FLOORPOSTSS item measures 12x12x74in with a material of SS304 finish Brushed.

Features

  • Tough, molded ABS junction box is contoured to fit the post and is fluted into the post to protect cables
  • Heavy-wall 3.5-in. structural tube welded to a 12 x 12 x 3/8-in.-thick baseplate
  • Provides a "rough-in" point and pull box for power and network field wiring
  • Includes internal CAT5 coupler and finger-safe power terminals
  • Two conduit knock-outs can be opened to either 1/2 in. or 3/4 in.
  • Fully gasketed 16 gauge cover panel on junction box can be used for additional conduit attachment

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
302
Protection Rating
NEMA Type 4X
Finish
Brushed
Sub Brand
Syspend
Size
11.90x11.9x74 in
Height (H)1,880
Depth (D)302
Product FamilySyspend
Weight67
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
