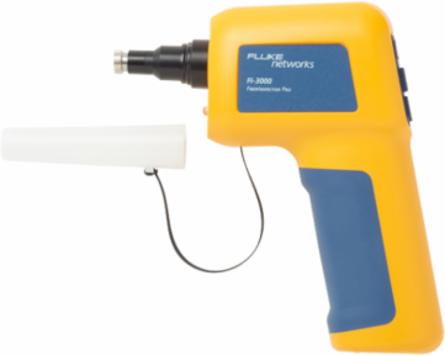

Fluke FI-3000 Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera
- MPN: FI-3000
- UPC: 754082146889
- PPN: FLU-FI-3000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

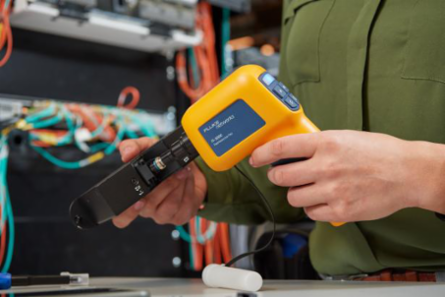

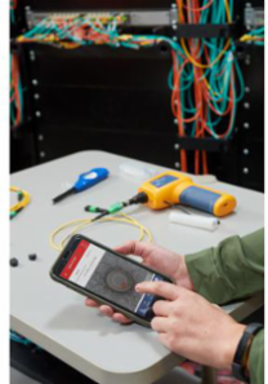

The FI-3000 FiberInspector™ Pro makes inspecting MPO and single fiber optic cables easy and efficient. Instant, real-time image with simple touchscreen gestures to view the full connector down to individual end faces. Automated pass/fail results are available in seconds. Store results on your phone and share with the mobile app. Versiv owners can also use Link Ware software. Compact, ergonomic design with autofocus makes it comfortable and fast.
Features
- MPO and single strand fiber inspection camera with instant Live View

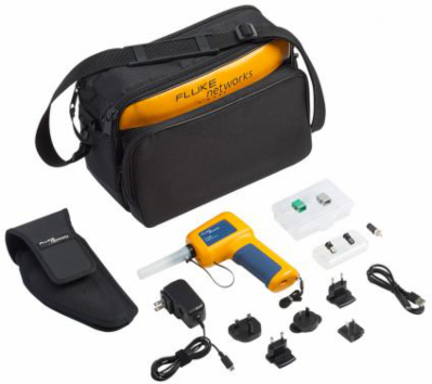

- Kit includes FI-3000 FiberInspector Ultra camera, tip set, adapter, holster and case
- Autofocus/Auto centering multi-camera design and automated pass/fail
- Total MPO visibility with Live View from full trunk to individual end face
- For single strand and 1 or 2 rows of 8/12/16 UPC or APC connectors
Documentation & Downloads
Specifications
Key Specifications
- Vibration
- 2 g, 5 Hz to 500 Hz
- Test limits
- IEC 61300-3-35 ED. 2 MM, IEC 61300-3-35 ED. 2 SM APC, Document only
- Camera type
- 5 Megapixel 1/4-inch CMOS sensor
- Resolution
- White LED
- Endface illumination
- Coaxial blue LED
- Dimensions
- 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm) (with no dust cap or adapter tip) - Length with dust cap: 7.5 in (191 mm)
Shock1 meter drop test
Optional automated pass/fail test timeLess than 2 seconds per fiber
Field of view610 µm x 460 µm
Light sourceLED, >100,000 hr life
Battery typeLithium-ion; 10.8 hour life
Weight11.5 oz (326 gm) (with dust cap and no adapter tip)
Temperature range
- Operating
- -10 °C to +45 °C (+14 °F to +113 °F)
Storage-10 °C to +60 °C (+14 °F to +140 °F)
Endtype support
- Single fiber and MPO
- 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)
Altitude
- Operating
- 4,000 m (3,200 m with AC adapter)
Storage12,000 m
Wireless transmission
- Output power
- <100 mW Frequency ranges
Power adapter
- Input
- 100 to 240 VAC ±10%, 50/60Hz
Output15 VDC, 2 A maximum, Class II
EMC
- IEC 61326-1
- Controlled Electromagnetic Environment; IEC 61326-2-1
- USA (FCC)
- 47 CFR 15 Intentional Radiators - This device complies with part 15 of the FCC rules.
CISPR 11Group 2, Class A
Humidity range
- Operating
- 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C), RH non-condensing
Storage0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C), RH non-condensing
Safety
- IEC 61010-1
- Pollution Degree 2
