Documentation & Downloads

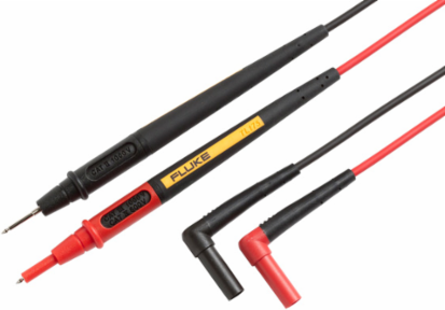

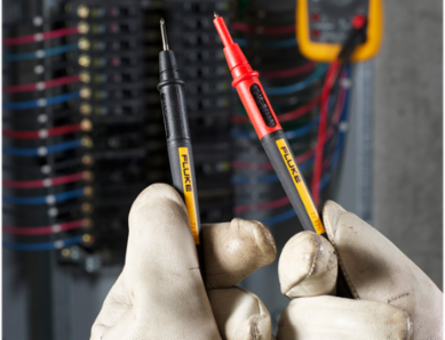

Fluke TL175 Fluke TL175 TWISTGUARDTM TEST LEADS 2MM DIA PROBE TIPS
- MPN: TL175
- UPC: 095969521543
- PPN: FLU-TL175
CAD
$65.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Quality test leads with adjustable length test tips for use in different measurement environments and increased safety. Buy Online Now.
Features
- Patented TwistGuard™ extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
- New WearGuard™ lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
- Double insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures
- Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure
- Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs
- Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
- TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tip

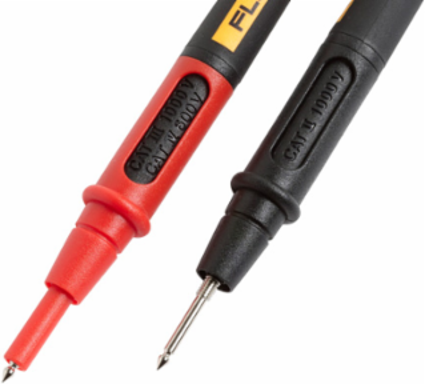

- Probes always show correct category rating for tip being used
- Environmental ratings: -20°C to 55°C (-4°F to 131°F), altitude: 2000 m (6,562 ft)
- Conforms to EN61010-031
- One-year warranty
Documentation & Downloads
Specifications
Additional
- Category Ratings
- CAT II 1000 V, CAT III 1000 V, CAT IV 600 V
- Pollution Degree
- 2
- Operating Altitude
- 2000 m (6,562 ft)
- Tip Length
- 4 mm to 19 mm
- Insulation
- Double insulated silicone with WearGuard
Maximum Current10 A
Environmental Temperature Range-20 °C to 55 °C
Probe Tip Diameter2 mm
MaterialSilicone
Strain ReliefExtra-heavy duty strain relief tested beyond 30,000 bends
