Bryant

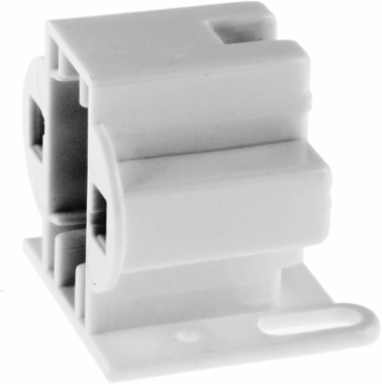

Bryant RL479HSM Compact Fluorescent Lamp Holder, 9 Watt, Horizontal Screw Mount, G23 Base

Compact Fluorescent Lamp Holder, 9 Watt, Horizontal Screw Mount, G23 Base
  • MPN: RL479HSM
  • UPC: 883778303975
  • PPN: HBL-RL479HSM
  • UNSPSC: 39111803

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$7.65/ EA

Description

Fluorescent Lamp Holders, Compact Type, 9 Watt, Horizontal Screw Mount

Features

  • Compact Type
  • 9 Watt
  • Horizontal Screw Mount
  • Standard Product

Specifications

Specifications

Country of Origin
China
Industry Standard(s)
C/US UL Listed;CSA Certified
Application
Compact Fluorescent
Frequency Rating
60 Hz
Special Features
Standard Product
Type
Compact Fluorescent
Connectivity
Screw Terminals
Freight Class Code
06168002
Image Actual Or Representative
A
Material - Mounting Hardware
Horizontal Screw Down
Material
Composite
Base Unit of Measure
EA
Carton - Gross Weight per Pack
0.55 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Case Weight
5.000 lb.
Lowest Level UOM
Each
Width1.100 in
PerformanceElectrical - Rating - 26-32W lamp type, 75W, 600V;Mechanical - Terminal Accommodation - Push-in wire terminals for #18 AWG solid or twist and tin stripped 7/16 inch wire
ColorWhite
Lamp SizeG23 Base
StandardC/US UL Listed;CSA Certified
Voltage Rating600V AC kV
Description - InvoiceCMPT FL LPHLDR 9-9W G23 HORZ SCREW
Harmonization Code8536610000
MSDS FlagNo
Current RatingTelephone/CATV A
SeriesLampholders
BOX SIZE3.700x8.900x7.800 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778303975
Case - Total Units100 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No

Downloads
