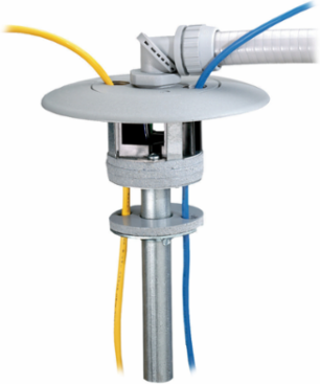

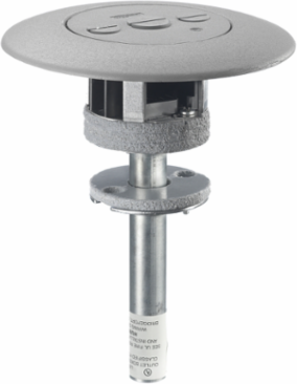

Hubbell Premise Wiring PT73FFSDGY Flush Furniture Feed Poke-Through Fitting, 3 Service, Gray Finish, 4-Hour Fire Rating
- MPN: PT73FFSDGY
- UPC: 783585494227
- PPN: HBL-PT73FFSDGY
- UNSPSC: 39121328
CAD
$576.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
In-Floor Delivery Systems, Fire-Rated Poke-Throughs, Flush Furniture Feed Series, Through Floor Fitting, 3 Service, Furniture Feed, Gray
Features
- 3 Service Furniture Feed FRPT
- Up to 4 Hour Fire Rating
- (2) 1/2"Threaded Hubs for Data and (1) 3/4" Threaded Hub for Power
- Aluminum Cover and Flange
- Gray Cover Finish
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 8.600 in |
| Performance | Electrical - Fire Resistance Rating - 4-Hrs. (D900);Electrical - UL Installation - Min. of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area;Mechanical - Max. Cu Cross Section - 3/4 in. EMT .0470 sq. in. and 1/2 in. Feed Through .0250 sq. in. |
| Finish | Gray |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Finish Type | Gray |
| Style | In Floor Fitting |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | PT73FFGY |
| Construction | Fabricated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| NAICS Code | 3359326106 |
| Core Hole | 3 Inch |
|---|---|
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Cable Entry | Threaded Hubs |
| Number of Outlet | (1) 3/4" & (2) 1/2" Threaded Hub Hub 3 Service |
| Cover Type | Furniture Feed |
| Number Of Outlets | (1) 3/4" & (2) 1/2" Threaded Hub Hub 3 Service |
| Description - Invoice | FLSH FRPT THRU-FTG,3SERV,FURNFEED,GY |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Material - Mounting Hardware | Step-Down Installation |
| Material | Composite |
| BOX SIZE | 7.200x10.100x8.600 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585494227 |
| Case Weight | 2.500 lb. |
| Lowest Level UOM | Each |
