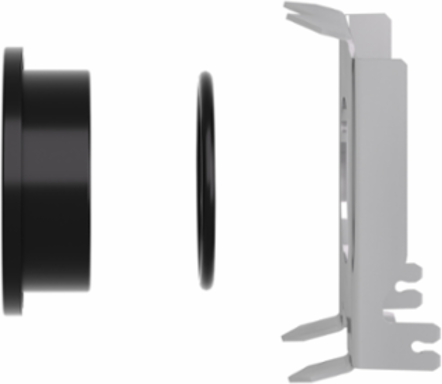

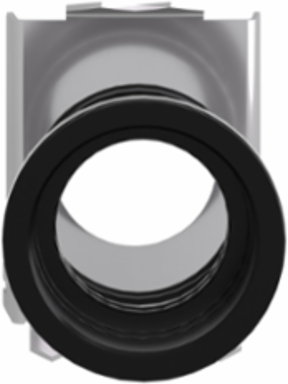

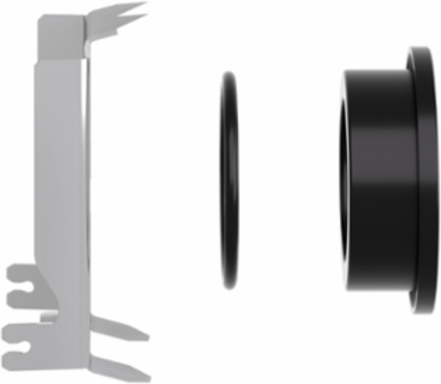

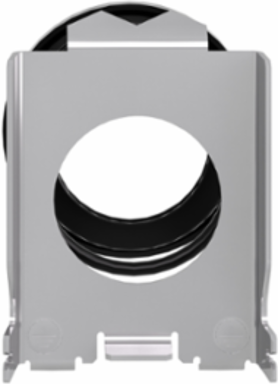

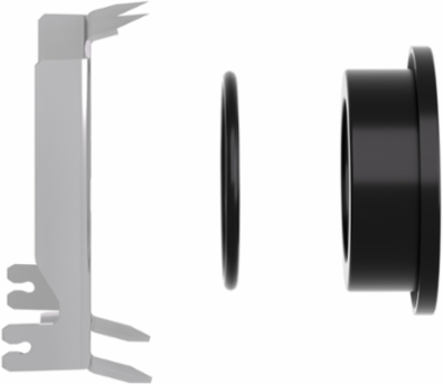

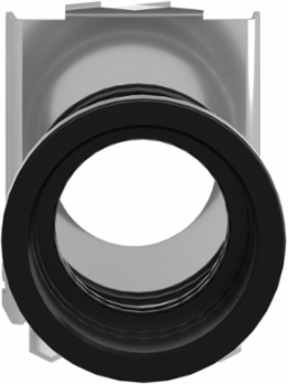

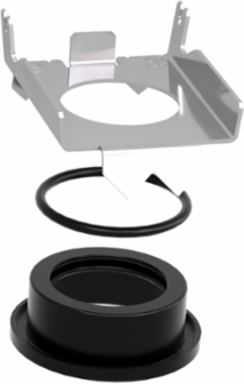

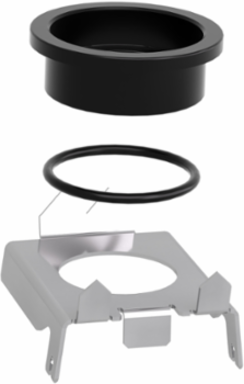

Schneider Electric ZB4BZ022 Flush Mounting Kit, Harmony XB4, Metal, 22 mm, IP66, Chromium Plated
- MPN: ZB4BZ022
- PPN: SCH-ZB4BZ022
CAD
$22.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

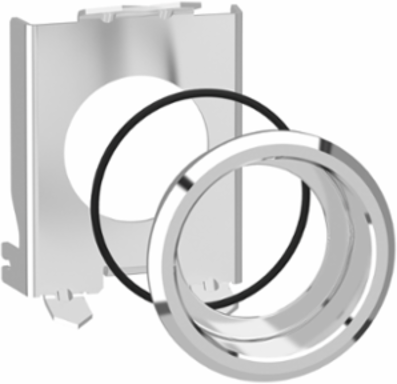

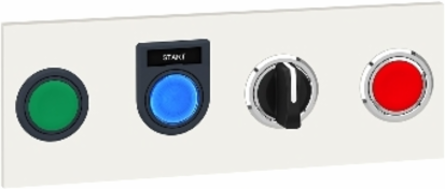

This Harmony XB4, flush mounting kit has a chromium plated color. This kit allows to flush mount any pushbuttons or pilot lights of the XB4 series. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Allows prevention of injury and damage on signalling units by concealing the unit beneath the level of the panel surface.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Important Information Attributes
- Customizable
- 0, no
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 2.08
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 23 %
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Accessory Category
- mounting and fixing accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Accessory / Separate Part Destinationselector switch high bezel high guard, illuminated push-button high bezel high guard
Local Publishable Date2026-01-12
Future Imap1.61
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content16 %

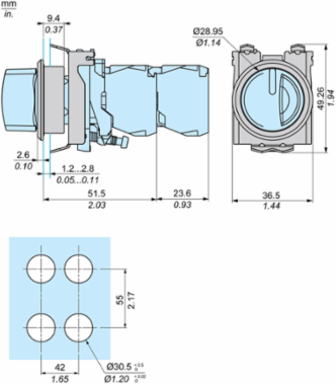

Mounting Diameter30.5 mm
Product Or Component Typeflush mounting kit
Range Of ProductHarmony XB4
Surface Finishchromium plated
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accessory / Separate Part Categorymounting and fixing accessory
Package Weight(Lbs)33.000 g
Warranty (In Months)18
Environment Attributes Main
- Ip Degree Of Protection
- IP66 IEC 60529 front face), IP69 IEC 60529 front face), IP69K DIN 40050-9 front face)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 16 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Product CompatibilityZB4BW, ZB4BKZB4BD.8ZB4BDZB4BD.9ZB4BJZB4BH..3ZB4BA.6ZB4BW
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- flush mounting kit
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001020
ETIM 9EC001020
