Thomas & Betts TB17-TB Form 7 Conduit Body
- MPN: TB17-TB
- UPC: 786210691794
- PPN: T-B-TB17-TB
CAD
$35.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

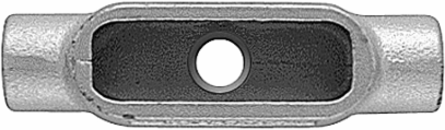

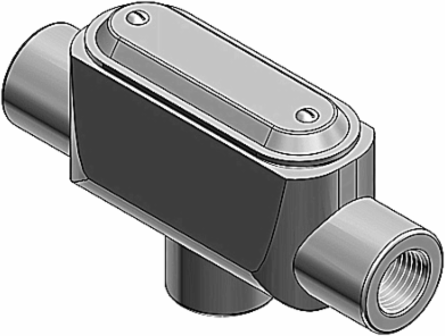

1/2 Inch Form 7 (TB) Conduit Body, Body Material Gray Iron with Zinc Plating and Baked on Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
Features
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
- Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
- Bodies are designed with a flat back, allowing more cubic inch capacity.
- T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's Form 7 bodies and covers.
- Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131708 Electrical conduit fitting body
- Brand Name
- T&B
- Special Features
- BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to Pull Wires.
- Standard
- UL E2969, CSA
- Form
- 7
- Finish
- Zinc Plated with Epoxy Powder Coat
IGCC5563 Electrical conduit fitting body
TypeForm 7 Conduit Body
ApplicationConduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors.
Hub Size1/2 Inch
MaterialGray Iron
Packaging
- Outer Quantity
- 5
- Weight Uom
- 137 lbs. per 100
Outer Dimensions (inches)9.5x3.5x7
