Weidmuller 2524850000 FP ESWB TERMINAL SET
- MPN: 2524850000
- PPN: WDM-2524850000
CAD
$33.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

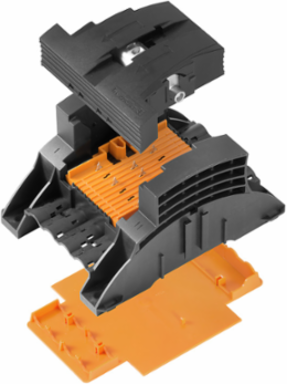

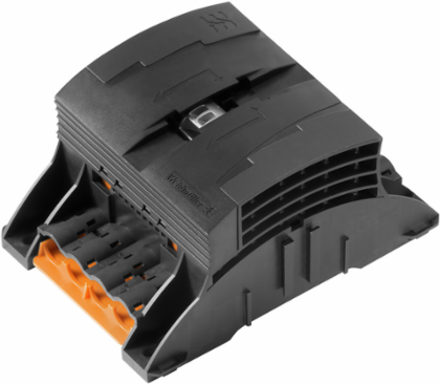

Wiring box for elevator shaft
Documentation & Downloads
Specifications
Further Technical Data
| Installation location | Hoistway wall |
|---|---|
| Type of fixing | Screwed on wall |
| Snap-on | No |
|---|
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights

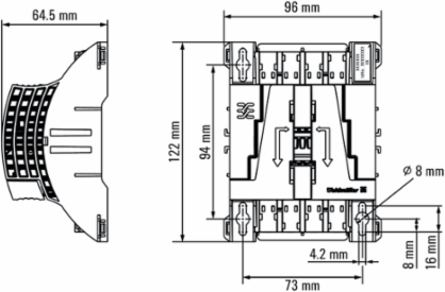

| Width | 96 mm |
|---|---|
| Height | 122 mm |
| Depth | 64.5 mm |
| Weight | 262 g |
| Width (inches) | 3.78 inch |
|---|---|
| Height (inches) | 4.803 inch |
| Depth (inches) | 2.539 inch |
| Net weight | 261.28 g |
Rated Data
| Rated current | 6 A |
|---|---|
| Rated voltage | 230 V |
| Rated impulse withstand voltage | 4 kV |
|---|---|
| Standards | EN 81-20 |
Material Data
| Colour | black, orange |
|---|---|
| Housing main material | Fiberglass-reinforced polyamide |
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Halogen | No |
|---|---|
| Material of eccentric disc | Zinc |
| Silicone | No |
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000214 |
|---|---|
| eClass 9.0 | 27-14-24-09 |
| eClass 10.0 | 27-14-24-09 |
| ETIM 7.0 | EC000214 |
|---|---|
| eClass 9.1 | 27-14-24-09 |
Product Information
| Product information | The elevator shaft wiring box is currently only approved with the flat cable type 6G1.5+1x0.75mm²+4Filler (P/N 297 144) and 9G1.5+2xFiller (P/N 297 145) from manufacturer Dätwyler Cabling Solutions.Further versions on request. |
|---|
Connectable Conductors (Push In)
| Clamping range, max. | 1.5 mm² |
|---|---|
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Solid, max. H05(07) V-U | 1.5 mm² |
| Stripping length | 12 mm |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.75 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.75 mm² |
| Clamping range, min. | 0.75 mm² |
|---|---|
| Flexible, min. H05(07) V-K | 0.75 mm² |
| Solid, min. H05(07) V-U | 0.75 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 mm² |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 50 °C |
| Operating temperature | -5 °C...50 °C |
| Temperature range, installation, min. | 10 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -5 °C |
| Storage temperature | -5 °C...50 °C |
| Temperature range, installation, max. | 50 °C |
