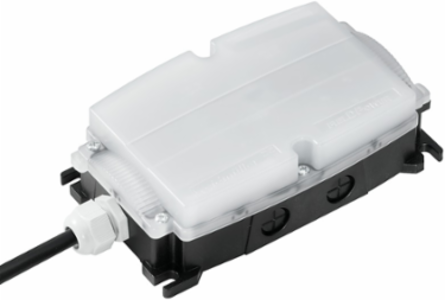

Weidmuller 1488520000 FP MONO LED DC SA
- MPN: 1488520000
- PPN: WDM-1488520000
CAD
$354.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FP MONO LED DC SA
Specifications
General Data
| Amplitude of acceleration | 5 m/s² (at 9-200 Hz) |
|---|---|
| Efficiency class (according to EU Directive No. 874/2012) | A |
| Height | ≤ 3000 m |
| LED operating life | > 50.000 h |
| Light current | 226.2 lm |
| Mounting position, installation notice | Arbitrary |
| Pollution severity | 2 |
| Protection class | II |
| Shock resistance EN 60721-3-3 | Class 3M3 portable |
| Silicone | No |
| Type of connection | Open cable end/length 2 m |
| Vibration resistance EN 60721-3-3 | Class 3M3 sinusoidal, stationary |
| Amplitude of deflection | 1.5 mm (2 to 9 Hz) |
|---|---|
| Halogen | yes (PVC cable) |
| Insulation voltage | < 500 V (housing/PE) |
| Light colour (CCT) | Cool White, 6000K |
| Line type | Heluwind WK 103w-Torsion 2x2.5 mm² |
| Peak acceleration, type L | 70 m/s² |
| Pre-assembled connector cross-section | 2.5 mm² |
| Protection degree | IP54 |
| Short-circuit protection | Yes, internal |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E345151 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 208 mm |
|---|---|
| Width | 104 mm |
| Height | 55 mm |
| Net weight | 602 g |
| Length (inches) | 8.189 inch |
|---|---|
| Width (inches) | 4.094 inch |
| Height (inches) | 2.165 inch |
Rated Data Acc. To Iec 60598-1
| DC input voltage range | 24...120 V DC |
|---|---|
| Power rating | 5 W |
| Input voltage | 21.6 V ... 144 V DC /protected against reverse polarity |
|---|---|
| Rated current DC | 0,2 A (24 V DC) |
Classifications
| ETIM 6.0 | EC001959 |
|---|---|
| eClass 9.0 | 27-11-06-40 |
| eClass 10.0 | 27-11-06-40 |
| ETIM 7.0 | EC001959 |
|---|---|
| eClass 9.1 | 27-11-06-40 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Emc
| Interference immunity test acc. to | Acc. to EN 61547 |
|---|
| Interference radiation | acc. to EN 55015 |
|---|
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
