nVent Hoffman

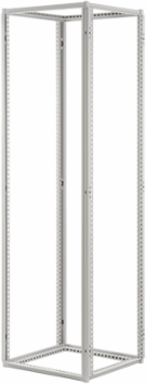

nVent Hoffman P2F2286HF Modular Enclosure Frame 2200x800x600 Inch, 12 Gauge Steel, 3000 lb Capacity

Modular Enclosure Frame 2200x800x600 Inch, 12 Gauge Steel, 3000 lb Capacity
  • MPN: P2F2286HF
  • PPN: HOF-P2F2286HF

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3310.46/ EA

Description

Modular Enclosure Frame 2200x800x600 Inch, 12 Gauge Steel, 3000 lb Capacity

Features

  • Superior performance under load: 12 gauge (2.5 mm) roll-formed steel frame with welded corners, hybrid frame profile
  • Easy to assemble and use: 25 mm hole pattern on horizontal and vertical frame members, wide door opening, removable rear center post for frames greater than 1200 mm wide
  • Wide range of standard options: 114 frame sizes; EMC protected and disconnect options, custom sizes on request

Specifications

Technical Data

Number of Doors
1 or 2
H in.
86.6
D in.
23.4
Maximum Subpanel Size in.
82.9x28.7
Nominal Frame (mm) HxWxD2200x800x600
W in.31.4
Gauge (mm)12 (2.5)
Maximum Rack Mounting Space47U

Overview

Description
This 12 gauge (2.5mm) roll-formed steel frame with fully welded solid steel corner blocks is a foundational design element of a modular enclosure. Innovative hybrid frame profile for superior performance under load.
Finish Color
Plated, Conductive
Model Code31795
Bulletin NumberP40
