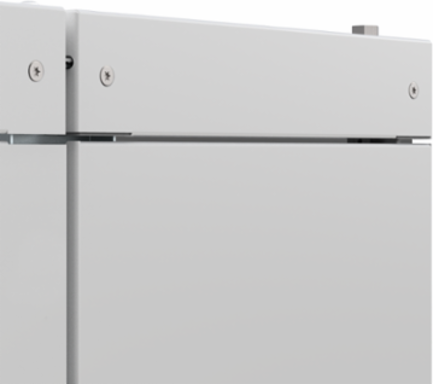

nVent Hoffman DPC0714R5 Top and Bottom Panel, 100x70x400 mm, Mild Steel, IP44 Protection
- MPN: DPC0714R5
- UPC: 783510470777
- PPN: HOF-DPC0714R5
CAD
$1123.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Both the enclosure's aesthetics and IP-rating are maintained when a complete set of doors and panels are mounted. This Top And Bottom Panels For Floor Standing Enclosures, DPC, DPC0714R5 item measures 104x400x17mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Description: Required to cover the remaining space at the top and bottom. Used in combination with horizontal dividers CDH/CDHK, partial doors DP, partial panels DPP and cable space door DPA.
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 44. For IP 21 delivered without gasket.
- Mounting requirements: DPC covers 200 mm in height of the enclosure. So for a 2000 mm high enclosure when DPC is used, there is 1800 mm space left for partial doors/panels.
- Pack quantity: Top and bottom panel with mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 400 |
| Works With | IEC |
| Protection Rating | IP44 |
| Material | Mild Steel |
| Color | Light Gray |
| Thickness (T) | 1.75 |
| Height (H) | 104 |
|---|---|
| Depth (D) | 17 |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Finish | Powder Coated |
| Color Code | RAL 7035 |
