PMA NKIS-M162 Adapters-Female
- MPN: NKIS-M162
- UPC: 786209961907
- PPN: T-B-NKIS-M162
CAD
$54.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

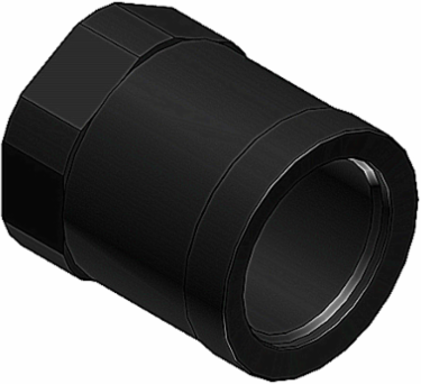

PMAFIX Pro Black Female Thread Adapter with Metric Threads, Adapter Material - Polyamide 6, Thread Material - Nickel-Plated Brass, Thread Size - M16x1.5, Conduit Size NW - 12
Features
- Very high impact resistance, even at very low temperatures
- High thread and system connection strengths
- Easy push-in assembly for maximum installation reliability
- Screwdriver required for dismantling, impeding unauthorized or accidental opening
- Space-saving dismantling
- Excellent conduit pull-out strength
- Fits both conduit profiles - Fine (T) and coarse (G)
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | Other |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | M16 x 1.5 |
| Thread length | 9mm |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit UR | Y |
| Approved in combination with protective conduit Lloyd's Register | N |
| Nominal diameter | 16mm |
|---|---|
| Model | Straight |
| Construction type | External thread |
| Thread type | Metric |
| Thread material | Brass |
| Total length | 49mm |
| Material sealing | No sealing |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +105°C |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 200 |
|---|---|
| Weight Uom | 0.05 lbs. Each |
North American Specifications (UNSPSC)
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| Brand Name | PMA |
| Special Features | Adapters-Female |
| Trade Size | NW12 |
| Material | Polyamide/Nylon 6 |
| Color | Black |
| IGCC | 5548 Electrical conduit coupling |
|---|---|
| Type | Adapters-Female |
| Application | For Applications with High Technical Requirements and In Most Demanding Climatic Conditions |
| Length | 49 mm |
| Connection | M16x1.5 |
