PMA BUNV-M253-UL Connectors-Straight
- MPN: BUNV-M253-UL
- UPC: 786209947918
- PPN: T-B-BUNV-M253-UL
CAD
$17.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

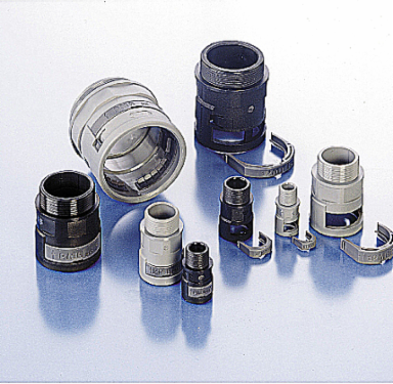

FIXPlus Straight Black Connector, Material - Polyamide 6, Thread Type - Metric, Thread Size - M25x1.5, Conduit Size NW - 23
Features
- Extremely high impact resistance
- Vibration resistant connection to PMAFLEX conduits
- Easy installation
- High conduit pull-out strength
- Very good chemical properties
- Free from halogens and cadmium
- Fits conduit profile coarse (G)
- Excellent fire characteristics allow application in public buildings such as hospitals, hotels, airports, train and subway stations, shopping centers, etc.
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M25 x 1.5
- Thread length
- 12mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- Y
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter25mm
ModelStraight
Construction typeInternal thread
Thread typeMetric
Thread materialPolyamide
Total length52mm
Material sealingNo sealing
Approved in combination with protective conduit CSAY
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +105°C
Packaging
- Inner Quantity
- 30
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity150
Weight Uom0.02 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39131707 Electrical conduit coupling
- Brand Name
- PMA
- Special Features
- Connectors-Straight
- Standard
- cULus E174370
IGCC5548 Electrical conduit coupling
TypeConnectors-Straight
ApplicationFor Cable Protection Systems In a Wide Range of Applications
MaterialPolyamide/Nylon 6
