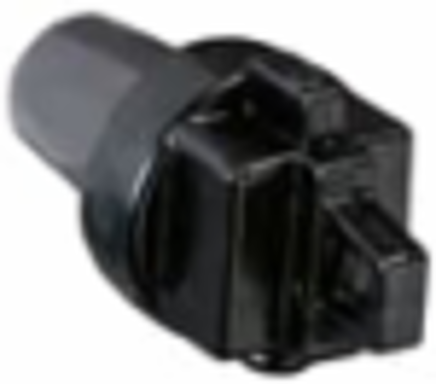

Thomas & Betts EFX083-012-E FULL RANGE CLF FOR ELBOW 8.3KV 12A
- MPN: EFX083-012-E
- UPC: 783786430741
- PPN: T-B-EFX083-012-E
- UNSPSC: 39121626
CAD
$502.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fuse, FLE - Fused Loadbreak Elbows, Full Range Current Limiting, System Voltage class 15kV, Nominal Fuse voltage rating 8.3 kV, Amperage Rating 12 Amps
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4980 >> Medium voltage fuse |
|---|
Additional Information
| Application | Current Limiting Protection, Capable of Interrupting in Elevated Ambient Temperatures. |
|---|---|
| Current Rating | 12 A |
| Material | Resin-Rich Filament Wound Glass/Epoxy Body |
| Product Type | Molded Current-Limiting Fuse |
| Special Functions | Tin Plated Brass Cap, Compacted Quartz Sand, Low-Current Interruption Element includes Patented Damage Sensor, High-Current Interruption Element, Soldered Electrical Connection and Sealing |
| Voltage Rating | 8.3 kV |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20050110 |
| Product Name | ELECTRICAL FUSE>1000V |
| Size | 9-1/4 in long, 2-1/4 in Diameter |
| Standards | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Technical UL/CSA
| Short-Circuit Current Rating (SCCR) | 50,000 A |
|---|
