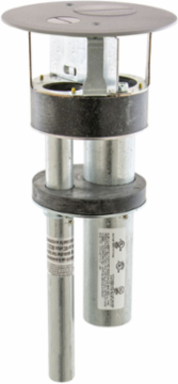

Hubbell Wiring Device-Kellems S1R4PTFFGRY Furniture Feed 4 Inch Fire Rated Poke-Through, (1) 3/4" & (1) 1½" Hubs
- MPN: S1R4PTFFGRY
- UPC: 783585546384
- PPN: HBL-S1R4PTFFGRY
- UNSPSC: 39121307
CAD
$1064.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fire Rated Poke Throughs, Furniture Feed 4" Series, Through Floor Fitting, Gray Powder Paint Cover
Features
- Multi-Service Furniture Feed FRPT with (1) 3/4"EMT for Power and (1) 1½" EMT for Data
- Up to 4 Hour Fire Rating
- One Piece Aluminum Cover Flange with Plated Finish with (1) 3/4"Threaded Hub for Power and (1) 1½" Threaded Hub for Data
- For use with a 4.00” to 4.12” Drilled or Formed Concrete Round Hole
- Step Down Installation
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Core Hole
- 4 Inch
- Industry Standard(s)
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Application
- 4" Fire-Rated Poke-Through Series
- Color
- Gray
- Number of Outlet
- (1) 3/4" & (1) 1½" Threaded Hub Multi-Service
- Standard
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Type
- 4" Recessed Rated Poke Through Kits
- Engineering Drawing 2 Display Text
- 4 INCH SOLUTION Drawing
- Mounting Type
- 4" Core Hole
- Style
- FRPT Kits
- Freight Class Code
- 06111001
- Image Actual Or Representative
- A
- Sub Class Code
- A36A352
- Material
- Fabricated
- BOX SIZE
- (in)
- NAICS Code
- 3359326106
Application - For Use OnConcrete
Width9.200 in
SizeStandard Sized Product
Cable EntryThreaded Hubs
Mounting4" Core Hole
Special FeaturesStandard Product
Sub BrandSystemOne Recessed
Engineering Drawing 1 Display TextS1R4PTFFGRY AutoCAD Drawing
General Literature Asset 1 Display TextHubbell SystemOne 4 Inch Solutions
Number Of Outlets(1) 3/4" & (1) 1½" Threaded Hub Multi-Service
Class CodeA36
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareStep-Down Installation
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585546384
Certifications
- EU RoHS Indicator
- Contact Manufacturer
