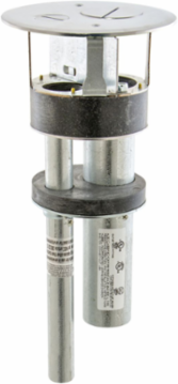

Hubbell Wiring Device-Kellems S1R4PTFFNKL 4 Inch Fire Rated Poke-Through with Satin Nickel Cover, Multi-Service
- MPN: S1R4PTFFNKL
- UPC: 783585546360
- PPN: HBL-S1R4PTFFNKL
- UNSPSC: 39121307
CAD
$1159.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Rated Poke Throughs, Furniture Feed 4" Series, Through Floor Fitting, Satin Nickel Plated Cover
Features
- Multi-Service Furniture Feed FRPT with (1) 3/4"EMT for Power and (1) 1½" EMT for Data
- Up to 4 Hour Fire Rating
- One Piece Aluminum Cover Flange with Plated Finish with (1) 3/4"Threaded Hub for Power and (1) 1½" Threaded Hub for Data
- For use with a 4.00” to 4.12” Drilled or Formed Concrete Round Hole
- Step Down Installation
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 4 Inch |
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Application | 4" Fire-Rated Poke-Through Series |
| Color | Nickel |
| Number of Outlet | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Type | 4" Recessed Rated Poke Through Kits |
| Engineering Drawing 2 Display Text | 4 INCH SOLUTION Drawing |
| Cover Type | Furniture Feed |
| Mounting Type | 4" Core Hole |
| Style | FRPT Kits |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | A |
| Sub Class Code | A36A352 |
| Material | Fabricated |
| BOX SIZE | (in) |
| NAICS Code | 3359326106 |
| Application - For Use On | Concrete |
|---|---|
| Width | 9.200 in |
| Size | Standard Sized Product |
| Cable Entry | Threaded Hubs |
| Mounting | 4" Core Hole |
| Special Features | Standard Product |
| Sub Brand | SystemOne Recessed |
| Engineering Drawing 1 Display Text | S1R4PTFFNKL AutoCAD Drawing |
| General Literature Asset 1 Display Text | Hubbell SystemOne 4 Inch Solutions |
| Finish Type | Satin Nickel Plated Cover |
| Number Of Outlets | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Class Code | A36 |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Material - Mounting Hardware | Step-Down Installation |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585546360 |
