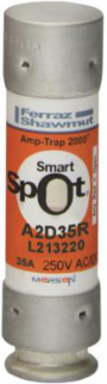

Mersen A2D35R Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 35A Ferrule SmartSpot® Amp-Trap 2000®
Mersen A2D35R Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 35A Ferrule SmartSpot® Amp-Trap 2000®
- MPN: A2D35R
- UPC: 782001990909
- PPN: FER-A2D35R
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.93/ EA
Description
Amp-Trap 2000 time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
Specifications
Specifications
- Rated voltage AC UL
- 250 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class RK1
- Mounting
- Clip
- Indication System
- Yes
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- PolyTube
- Weight
- 0.119 lb
Rated voltage DC UL250 V
Ampere Rating35 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Indication System TypeSmartSpot®
Connection/Terminal TypeFerrule
Length3 in
