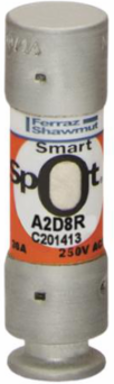

Mersen A2D8R Fuse Amp-Trap 2000 250V 8A Time-Delay Class RK1 with SmartSpot Indicator
Mersen A2D8R Fuse Amp-Trap 2000 250V 8A Time-Delay Class RK1 with SmartSpot Indicator
- MPN: A2D8R
- UPC: 782001990787
- PPN: FER-A2D8R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.20/ EA
Description
Amp-Trap 2000 time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
Specifications
Specifications
- Rated voltage AC UL
- 250 V
- Ampere Rating
- 8 A
- AC or DC
- AC
- Speed/Characteristic
- Time Delay
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System Type
- SmartSpot®
- Connection/Terminal Type
- Ferrule
- Length
- 2 in
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassClass RK1
MountingClip
Indication SystemYes
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialPolyTube
Weight0.037 lb
