Mersen

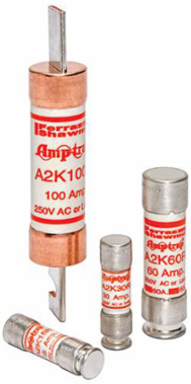

Mersen A2K350R Fuse Amp-Trap 250V 350A Class RK1 Fast-Acting, 2.06 Inch Diameter

Fuse Amp-Trap 250V 350A Class RK1 Fast-Acting, 2.06 Inch Diameter
  • MPN: A2K350R
  • UPC: 782001915353
  • PPN: FER-A2K350R

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$560.45/ EA

Description

Current-limiting Amp-Trap A2K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Specifications

Specifications

Rated voltage AC UL
250 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class RK1
Mounting
Clip
Connection/Terminal Material
Tin-Plated Copper
Body/Insulating Material
PolyTube
Weight
1.68 lb
Rated voltage DC UL250 V
Ampere Rating350 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
