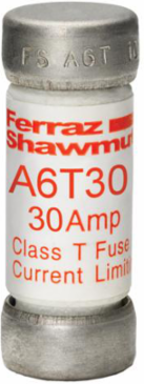

Mersen A6T30 Fuse Amp-Trap® Fast-Acting Class T 30A 600V, Compact Design, 1.5 Inch Length
- MPN: A6T30
- UPC: 782001891060
- PPN: FER-A6T30
CAD
$48.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- Speed/Characteristic
- Fast-Acting
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Type
- Ferrule
- Length
- 1.5 in
Rated voltage DC UL300 V
Ampere Rating30 A
Fuse ClassClass T
MountingClip
Connection/Terminal MaterialCopper
Body/Insulating MaterialGMG
Weight0.03 lb
