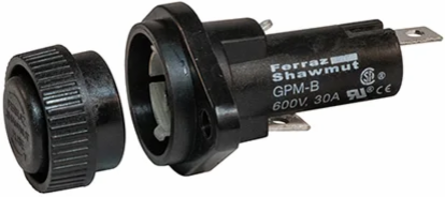

Mersen GPM-B Fuse Base 600V 30A 1-Pole Panel Mount with 1/4 Inch Quick Connect/Solder
- MPN: GPM-B
- UPC: 782001760199
- PPN: FER-GPM-B
CAD
$11.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
Documentation & Downloads
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Design Details | 1/4 Turn Bayonet Knob |
| Fuse Installation Method | Clip-in |
| Installation Mounting | Panel Mount |
| Width | 1.13 in |
| Height | 1.13 in |
| Rated voltage DC UL | 600 V |
|---|---|
| Ampere Rating | 30 A |
| AC or DC | AC/DC |
| Fuse Type/Class | Midget |
| Number of Poles | 1-Pole |
| Max Fuse Rating | 30 A |
| Body/Insulating Material | Thermoplastic |
| Length | 2.42 in |
| Weight | 0.065 lb |
