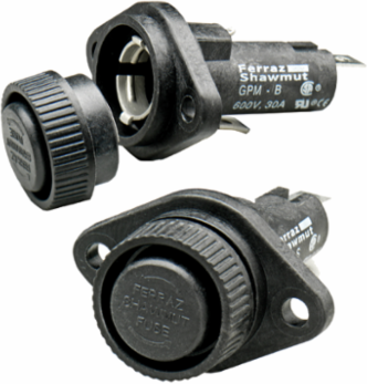

Mersen GPM-BRR 600V 30A 1-Pole Fuse Base with 1/4 Inch Quick Connect/Solder

MPN: GPM-BRR
UPC: 782001674328
PPN: FER-GPM-BRR

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$55.00/ EA

Qty:

Loading add to cart quantity...

Description

Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.

Specifications

Rated voltage AC UL: 600 V

Frequency (Hz): 50/60 Hz

ROHS Compliant: Yes

Short Circuit Current Rating (SCCR): 100 kA

Design Details: 1/4 Turn Bayonet Knob

Fuse Installation Method: Clip-in

Installation Mounting: Panel Mount

Width: 1.13 in

Height: 1.13 in

Rated voltage DC UL600 V

Ampere Rating30 A

AC or DCAC/DC

Fuse Type/ClassClass CC

Number of Poles1-Pole

Max Fuse Rating30 A

Body/Insulating MaterialThermoplastic

Length2.42 in

Weight0.065 lb
