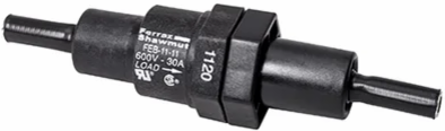

Mersen FEB-11-11 Fuse Base 600V 30A Midget 1-pole with Water Resistant Seal and Clip-in Installation
- MPN: FEB-11-11
- UPC: 782001300685
- PPN: FER-FEB-11-11
CAD
$56.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen’s complete line of single and dual pole in-line fuse holders accommodate either 1-1/2" x 13/32" (10 x 38 mm) midget or Class CC fuses. The fuse holders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuse holder providing a waterresistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuse holder can be easily reconnected.
Features
- Explicitly designed to accommodate standard 1-1/2 in times 13/32 in (10 times 38 mm) Midget fuses, this holder provides a perfect, gap-free mechanical fit. It eliminates installation guesswork and ensures compatibility with high-performance fuse series like ATQ, ATM, TRM, and OTM, preventing localized overheating and nuisance trips in demanding systems.
- Engineered with a robust 600V AC/DC rating and a 30-amp capacity, this single-pole holder delivers highly reliable electrical protection for high-voltage infrastructure. It easily handles harsh street lighting, parking lot arrays, and traffic signaling demands, preventing catastrophic equipment failure and expensive system downs.
- Equipped with three internal, captive blue O-rings per pole, this unit provides a water-resistant compartment that tightly seals the inner fuse from external element damage. This design mitigates the risk of tracking, terminal corrosion, and premature fuse degradation caused by rain, high humidity, or coastal salt air.
- Built with integrated captive screws, this fuse holder eliminates the risk of dropped, lost, or misplaced components during challenging field installations. This allows utility technicians and commercial electricians to accelerate their assembly times and perform maintenance safely, even while working on elevated lifts or in tight spaces.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V
- Short Circuit Current Rating (SCCR)
- 100 kA
- AC or DC
- AC/DC
- Number of Poles
- 1-Pole
- Fuse Installation Method
- Clip-in
- Frequency
- 50/60 Hz
- Width
- 1 in
- Weight
- 0.1 lb
- Water Resistance
- Water-resistant seal with 3 internal O-rings
Amperage30 A
Fuse Size1-1/2 in x 13/32 in (10 x 38 mm)
Temperature Rating155°C
Installation MountingIn-Line
Fuse Type/ClassMidget, Class CC
Length4.3 in
Height1 in
Body/Insulating MaterialPolyethylene
ROHS CompliantYes
